Collet Chucks
High concentricity chuck bodies engineered for fast changeover and repeatable clamping.
Collet chuck bodies built for accuracy and quick changeover, ER, 5C and spindle mount configurations, ground and inspected for repeatable clamping.
| Designation | Range |
|---|---|
| ER-32 chuck | to ER-32 |
| ER-40 chuck | to ER-40 |
| 5C chuck | 5C collets |
| Spindle mount | to drawing |
Serving: Automotive · General Engineering

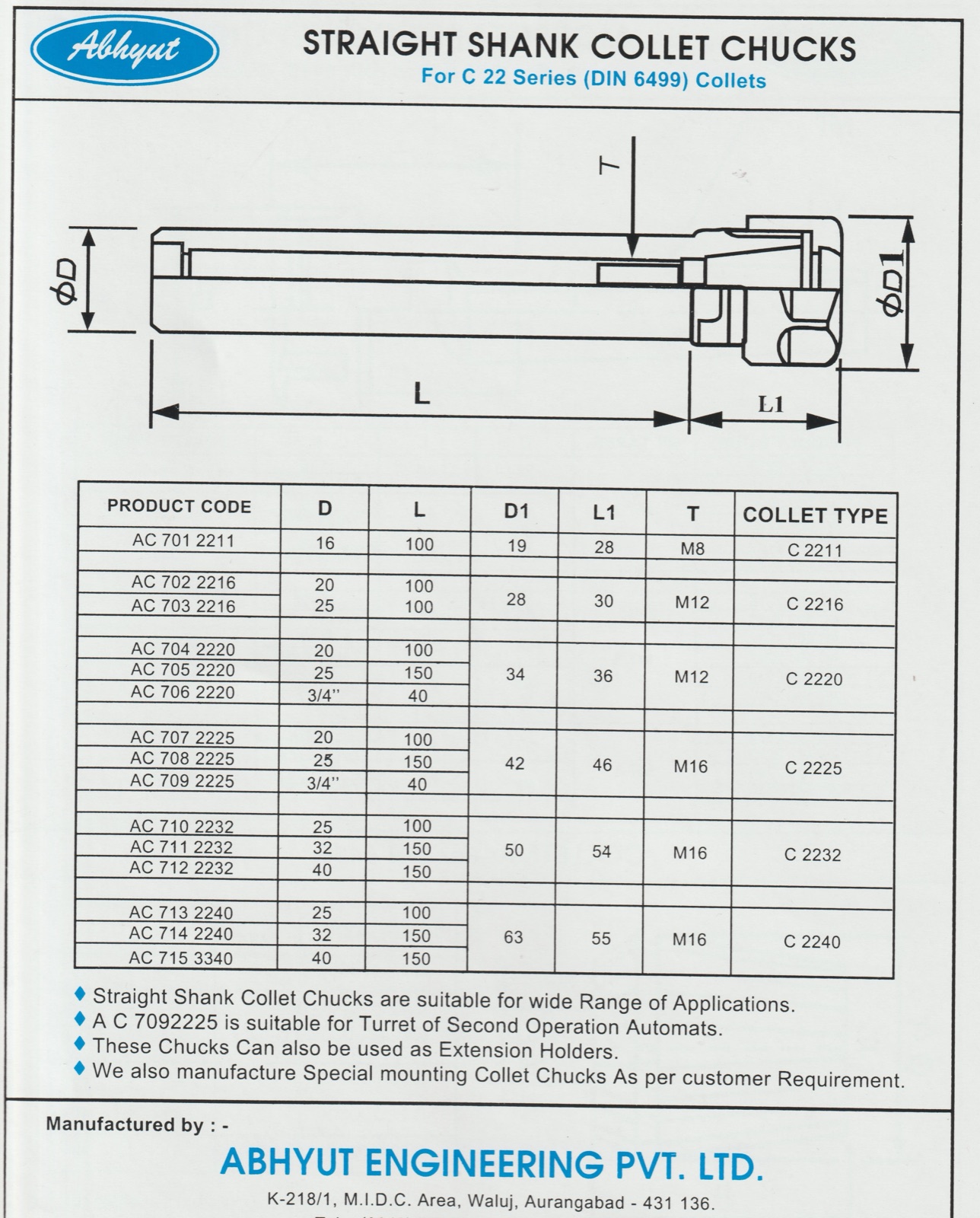

Collet chucks for tool holding, straight shank
Straight shank collet chucks for a wide range of applications; can also be used as extension holders.

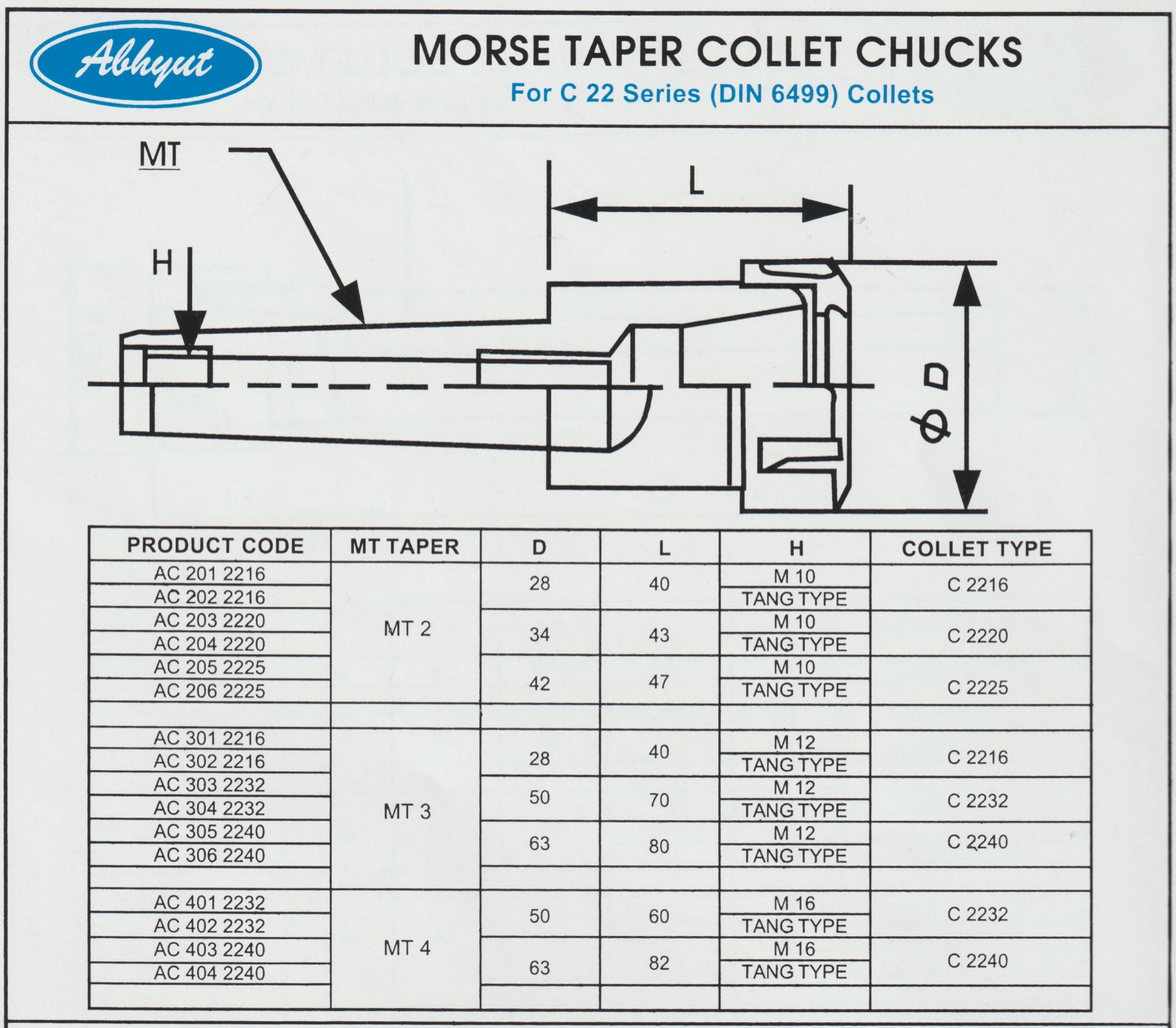

Morse taper collet chucks (C22 / DIN 6499)
Morse taper collet chucks for C22 series (DIN 6499) collets, MT2, MT3 and MT4.
Collet chucks
Precision collet chuck bodies for accurate, repeatable clamping.

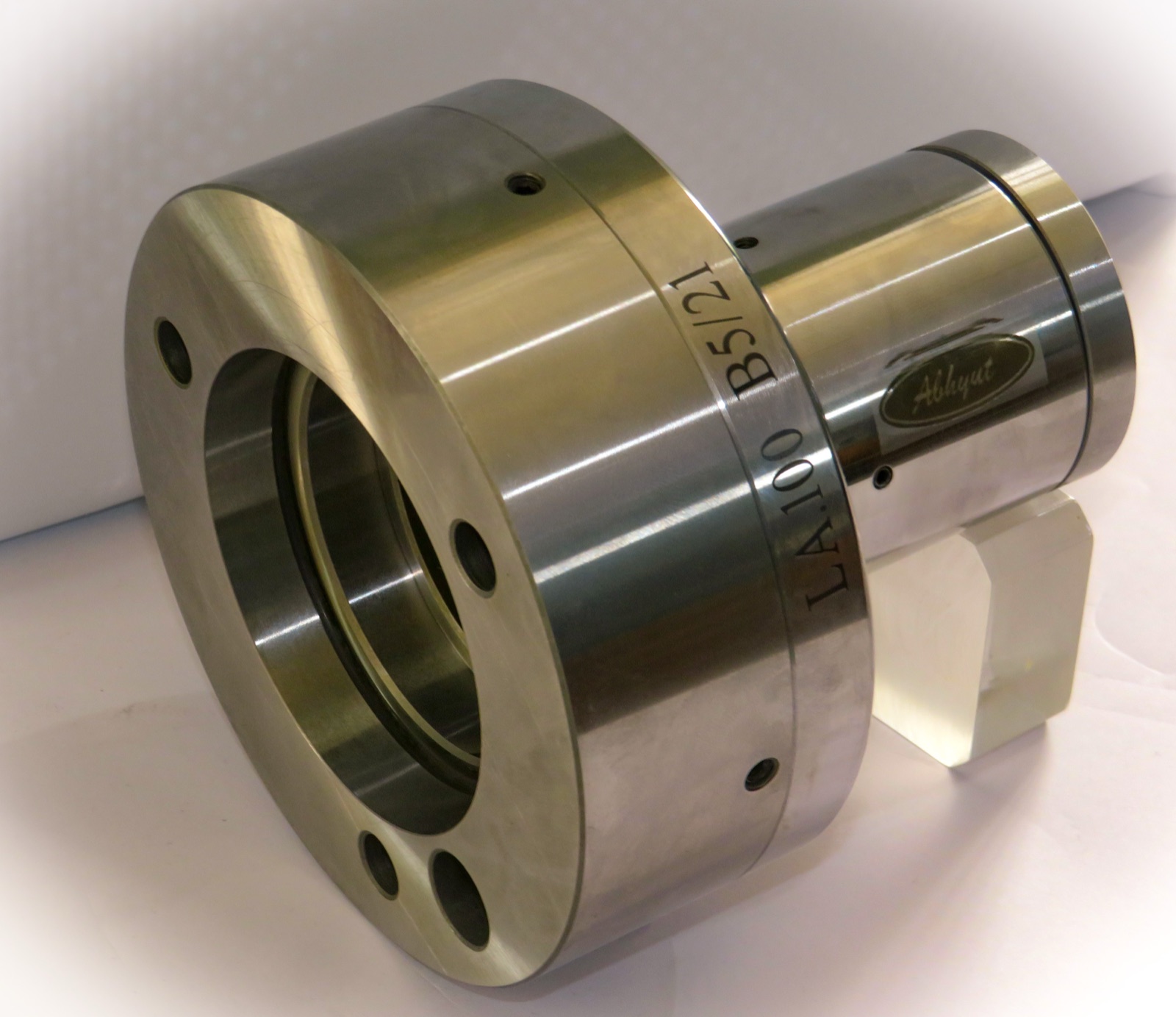

Power operated collet chucks for O.D Clamping
High concentricity power operated chucks (e.g. C3108) for fast, repeatable clamping on CNC.

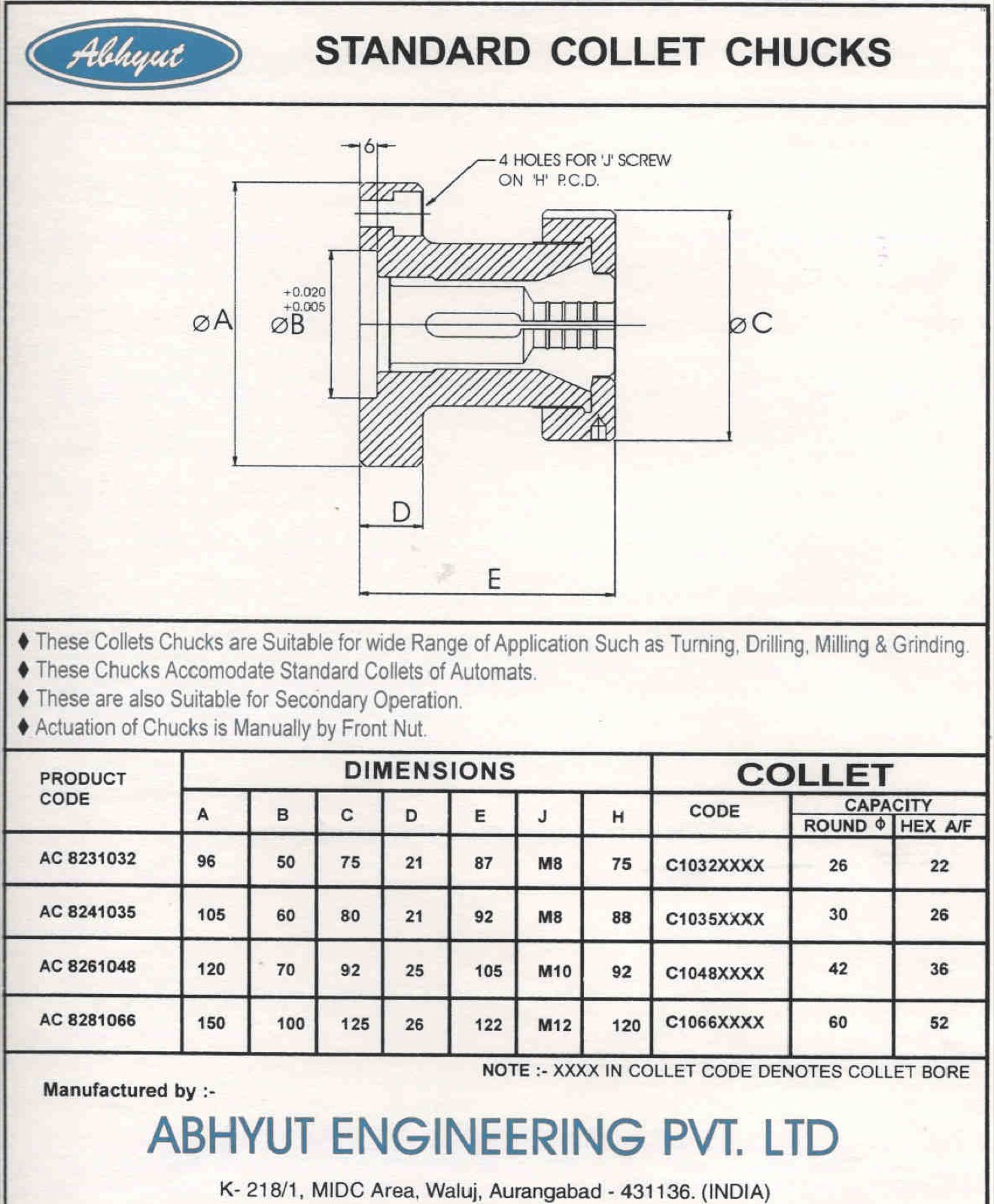

Manually operated collet chucks
Standard manually operated collet chucks that mount to the lathe spindle.

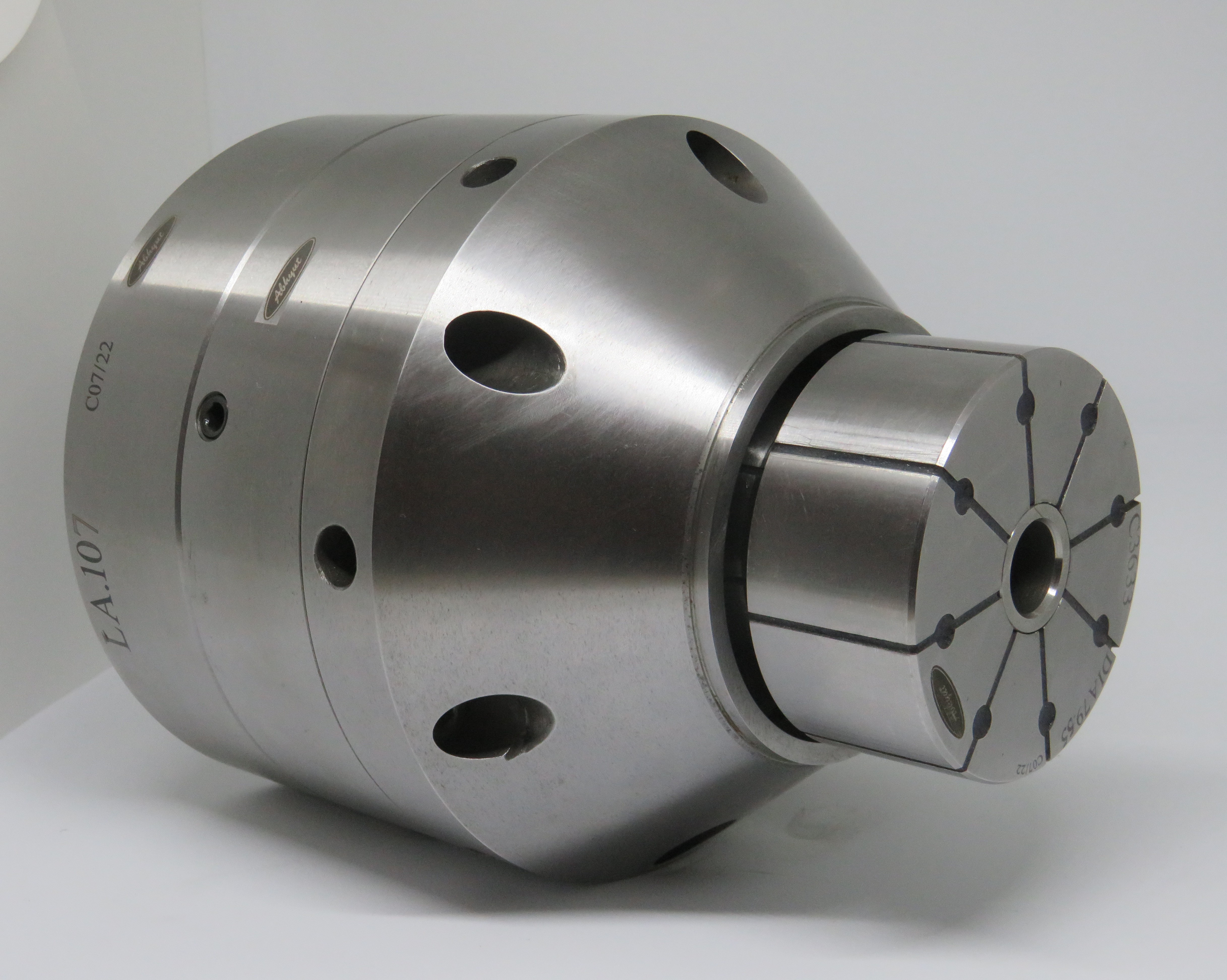

Internal Diameter (I.D) Clamping Collet Chuck
To Clamp Internal Diameter From 8.00 mm Onwards. Special Design to suit Customer Requirements.
