Collets
Spring, dead-length and pull-back collets in standard and custom bores for lathes and grinders.
Precision collets manufactured in-house to tight tolerances. Available as hobbing, standard and dead-length types, in both catalogue sizes and custom bores made to your drawing.
| Designation | Range |
|---|---|
| ER-16 | 1–10 mm |
| ER-25 | 1–16 mm |
| ER-32 | 2–20 mm |
| ER-40 | 3–26 mm |
| 5C | 1–26 mm |
Serving: Automotive · General Engineering · Job-work

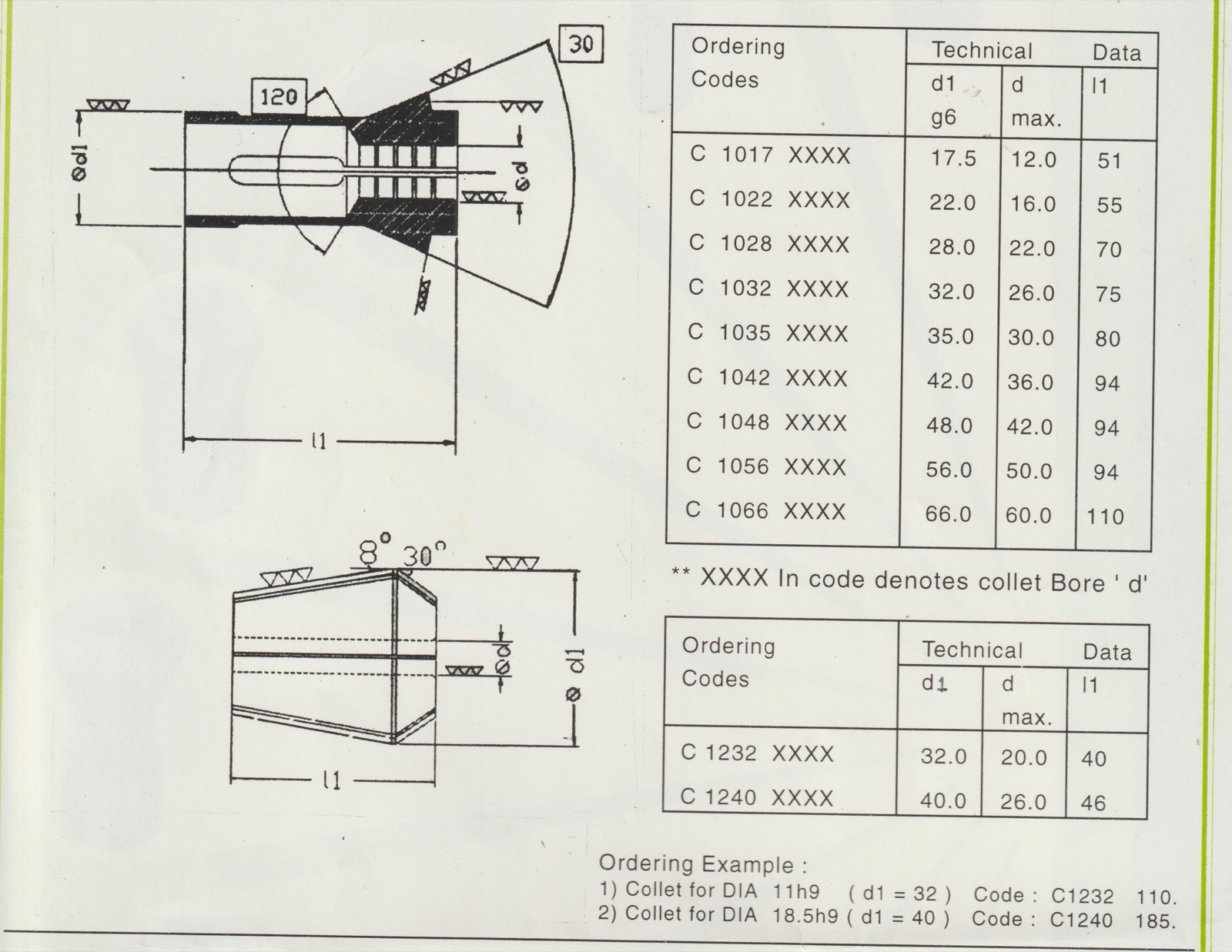

Standard collets (IS : 6238)
Spring collets to IS:6238 in the C-series. Order by code — the XXXX in the code denotes the collet bore 'd'.

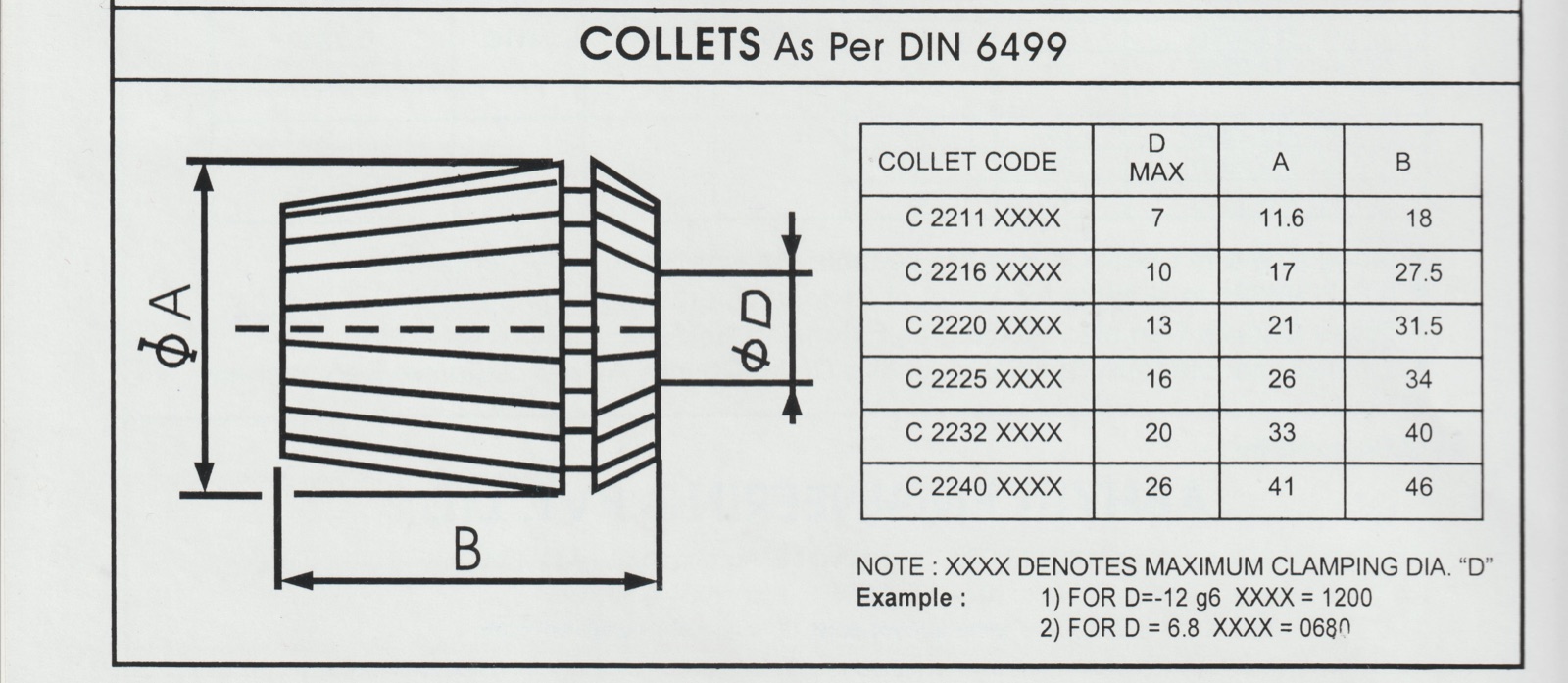

ER collets (DIN 6499)
ER spring collets to DIN 6499, ER-16 through ER-40.

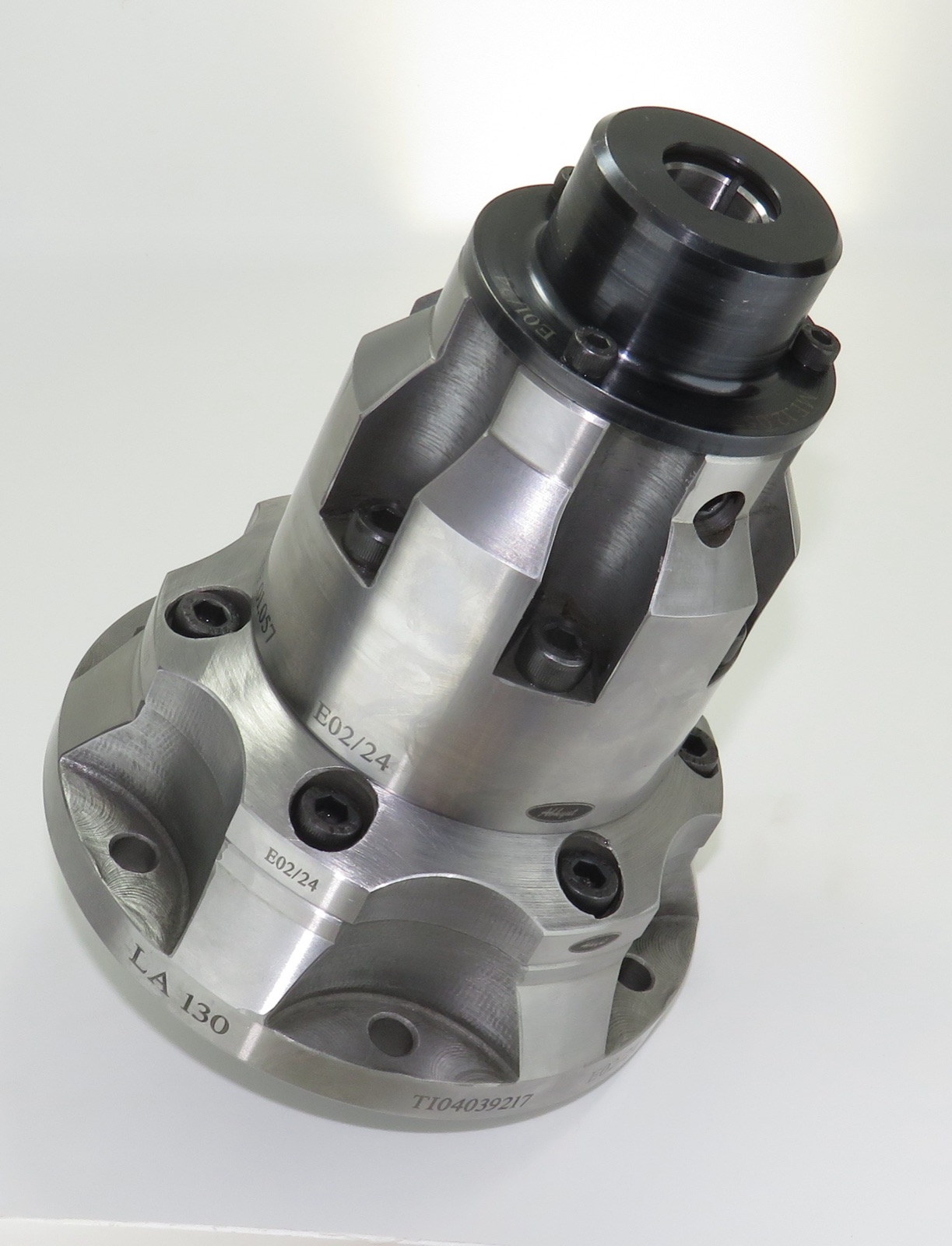

Hobbing collets
Collets and adaptors for gear-hobbing machines, ground for concentricity.

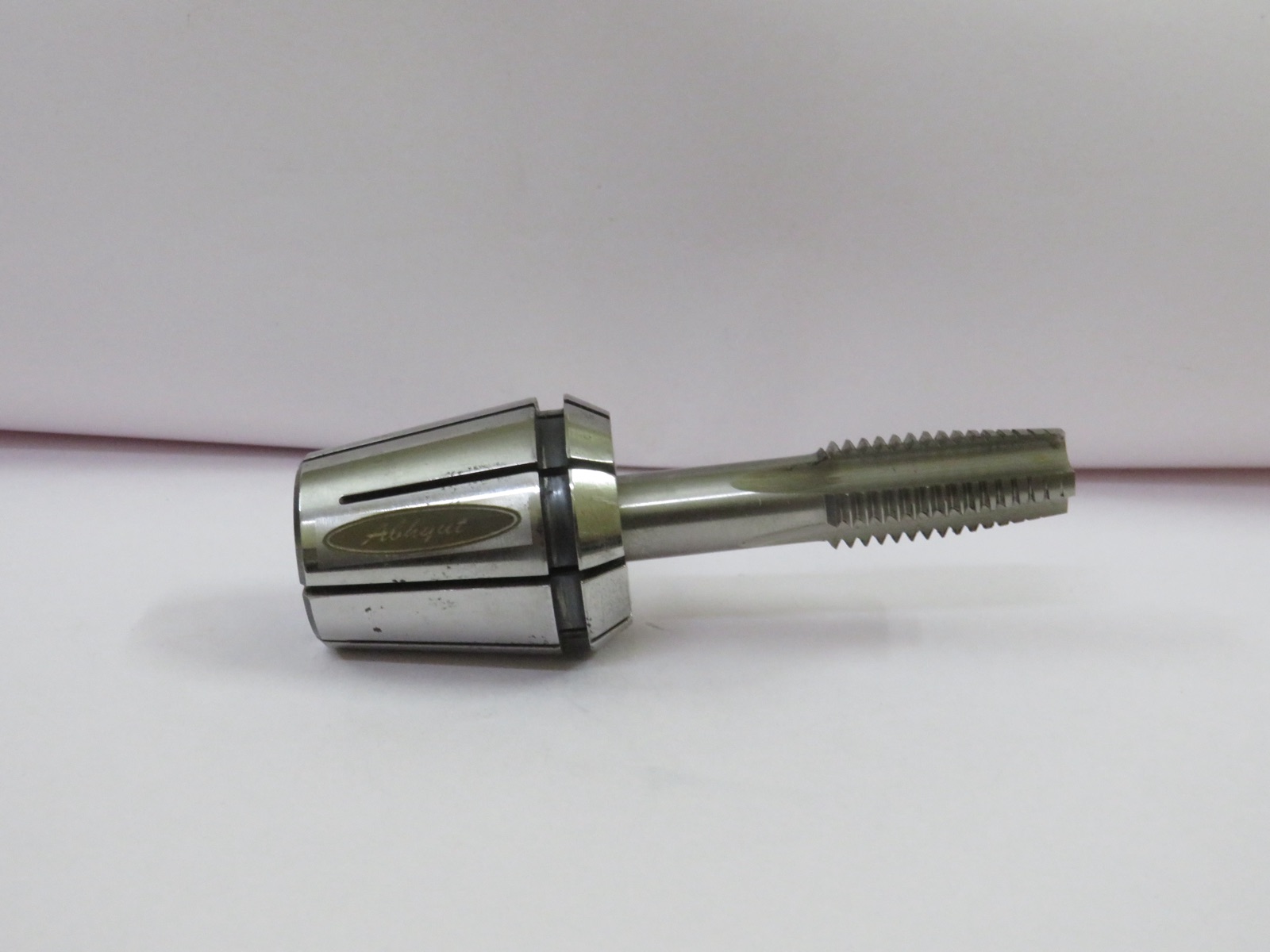

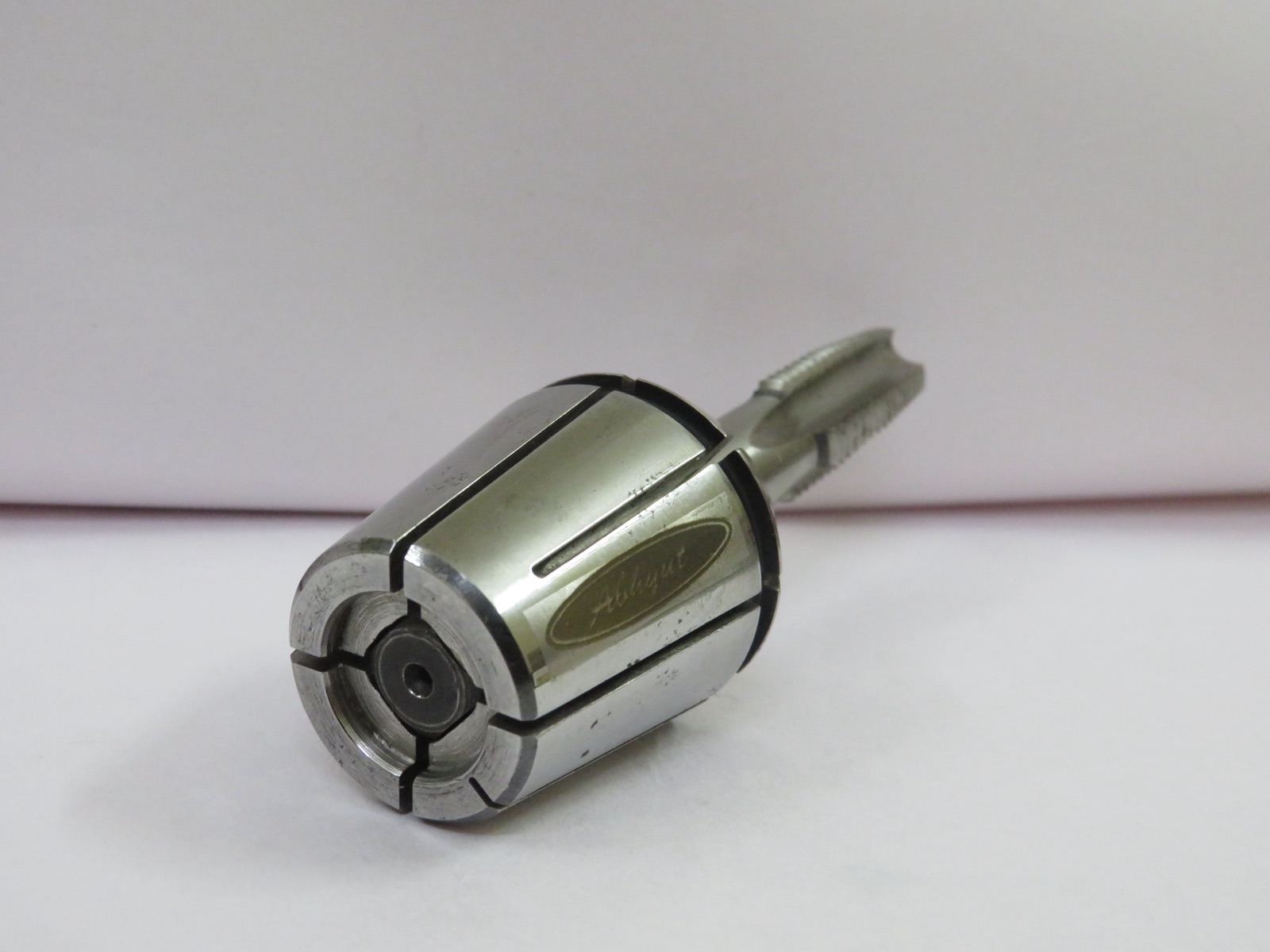

Tap collets
Quick-change tapping collets with square drive, for through and blind-hole tapping.

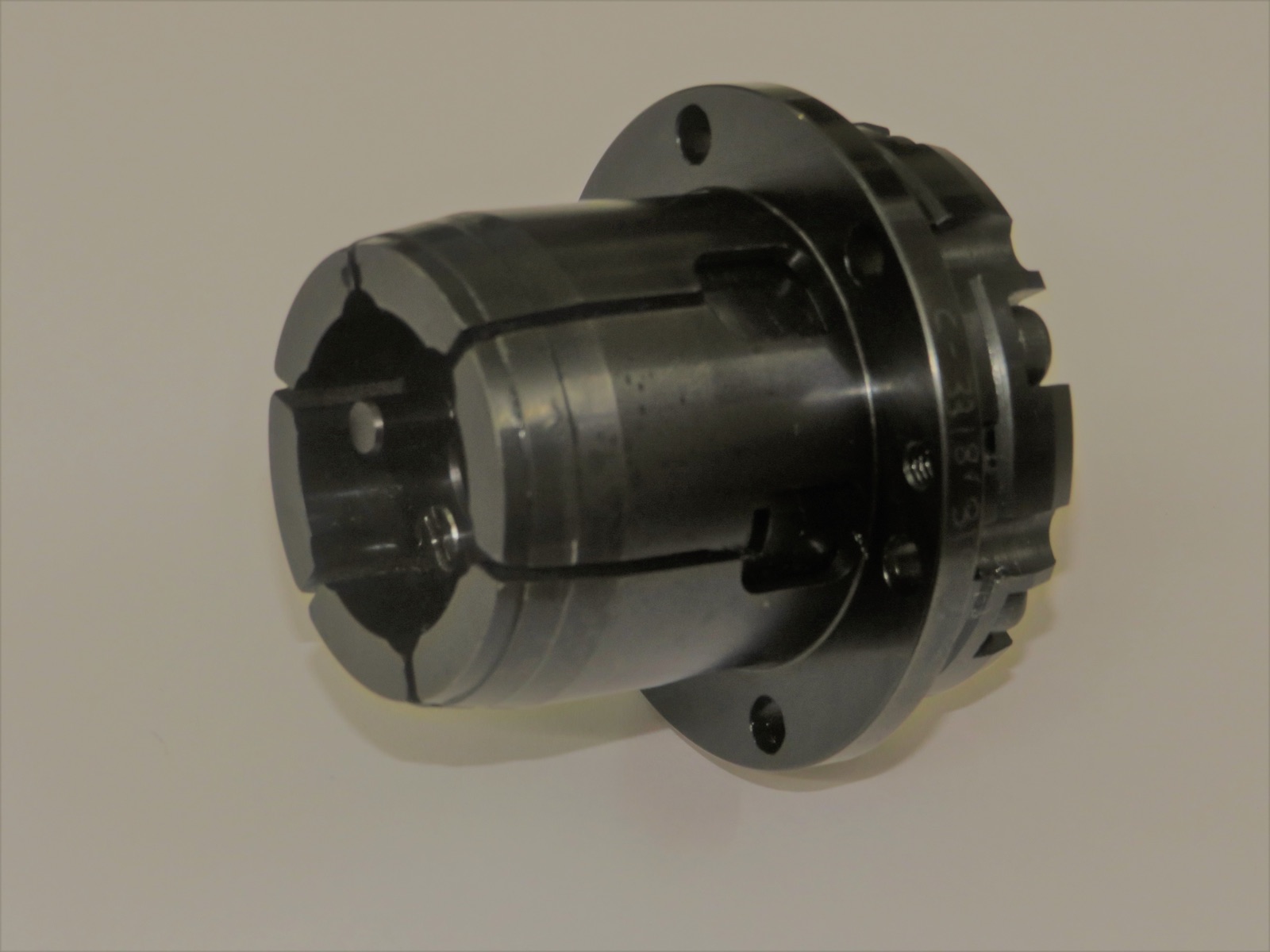

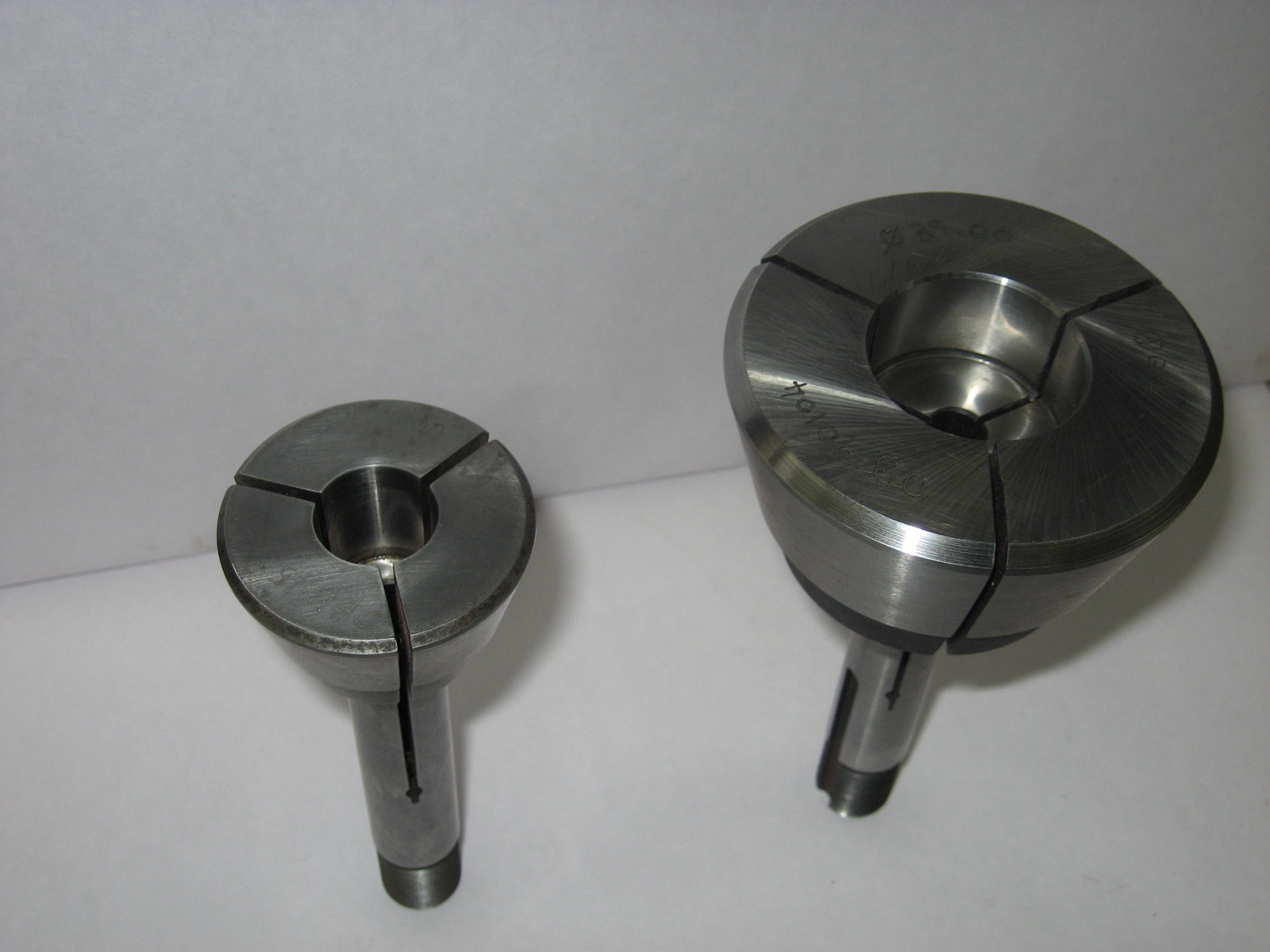

Special collets
Made-to-drawing collets for non-standard bores, profiles and step diameters.

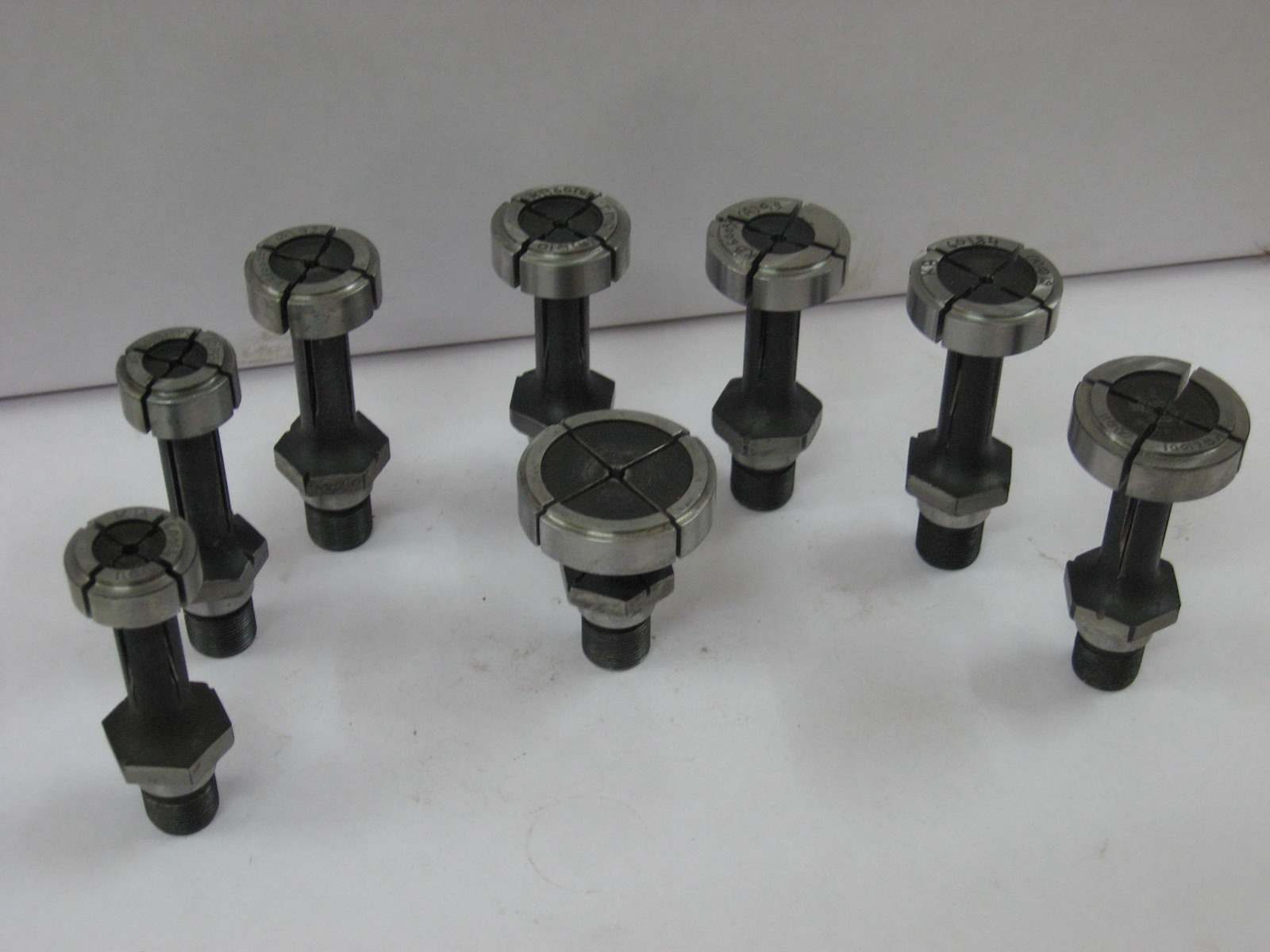

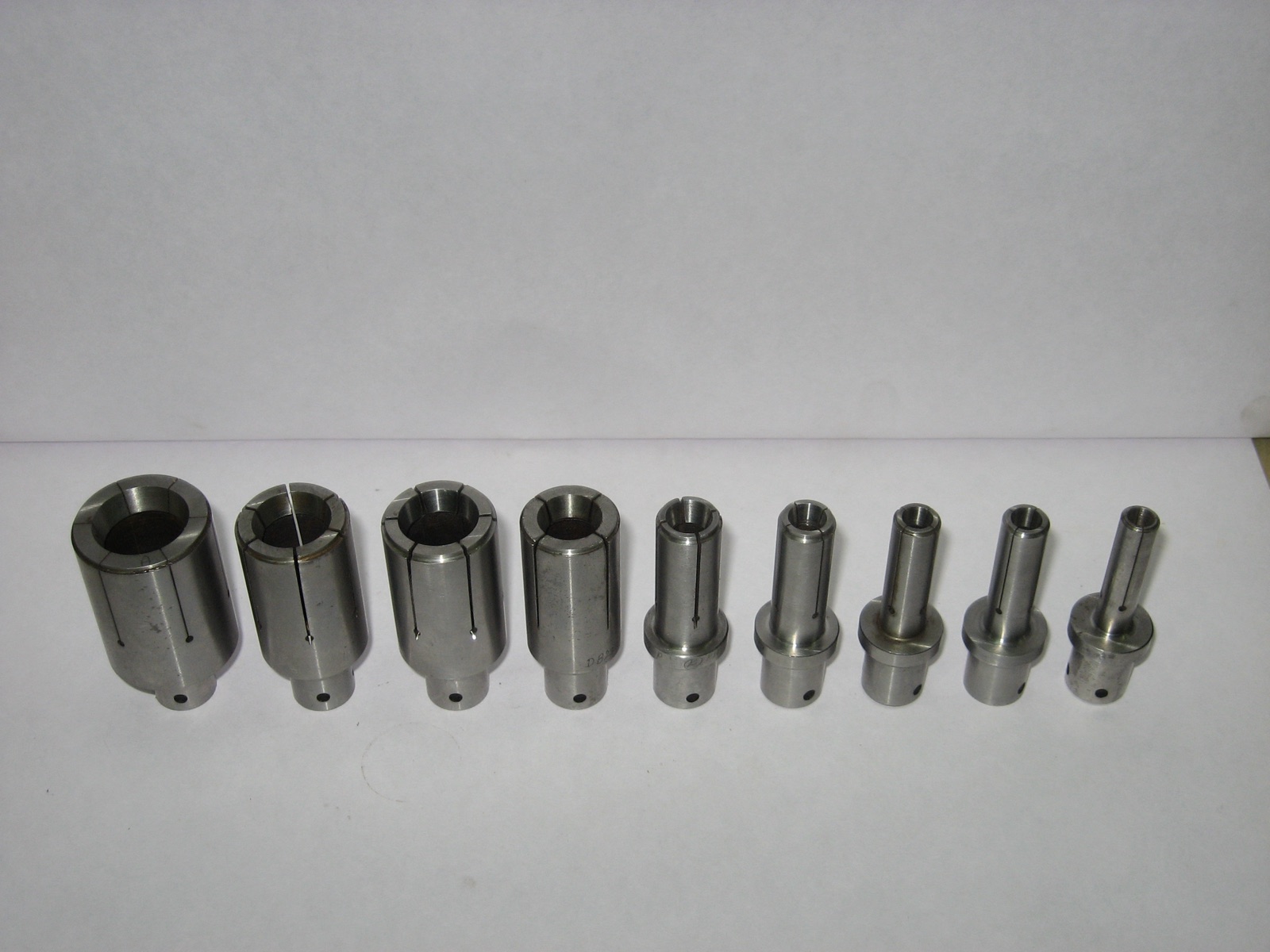

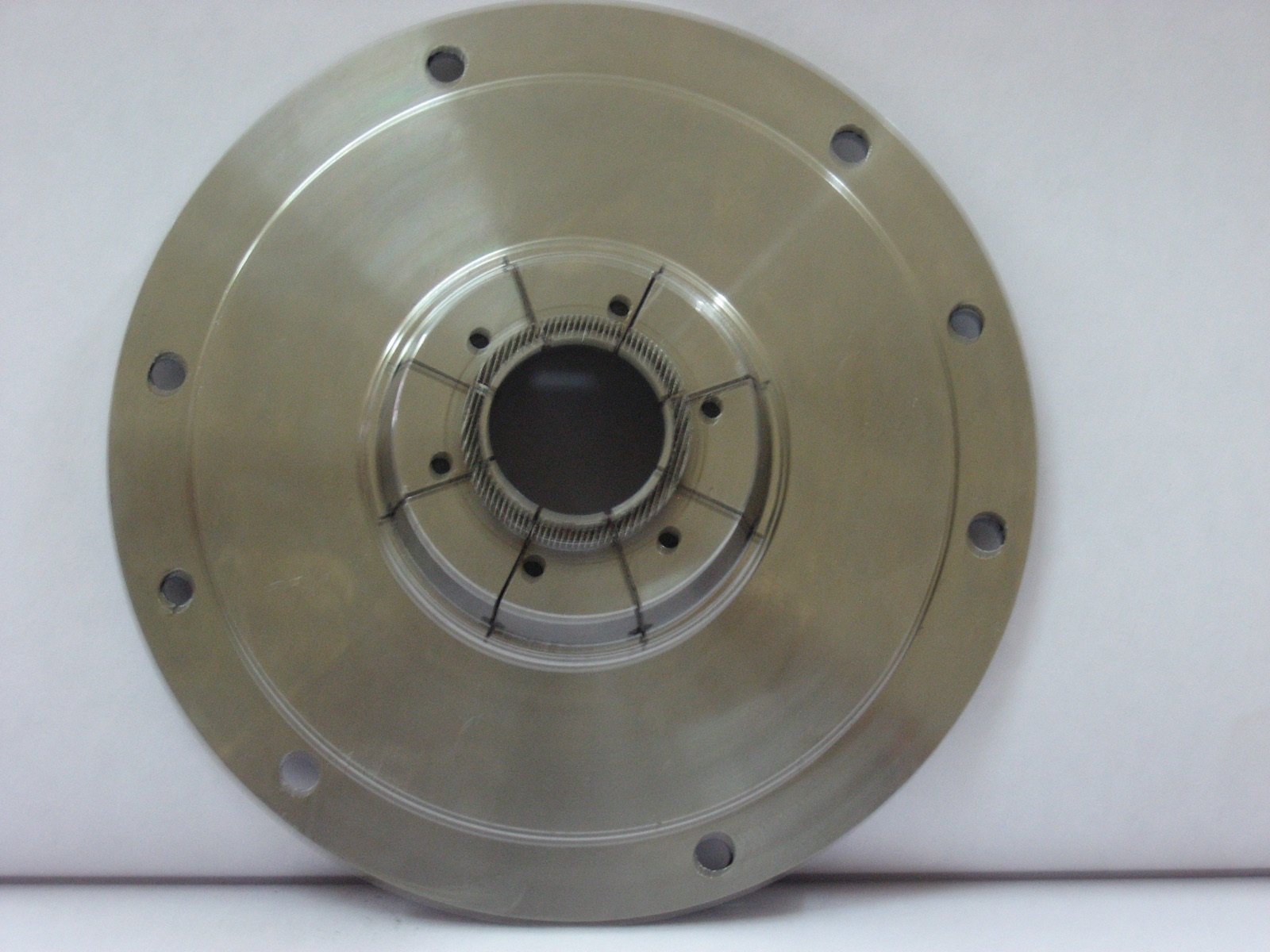

Internal clamping collets
Expanding (internal) collets that locate and clamp on a bore.
